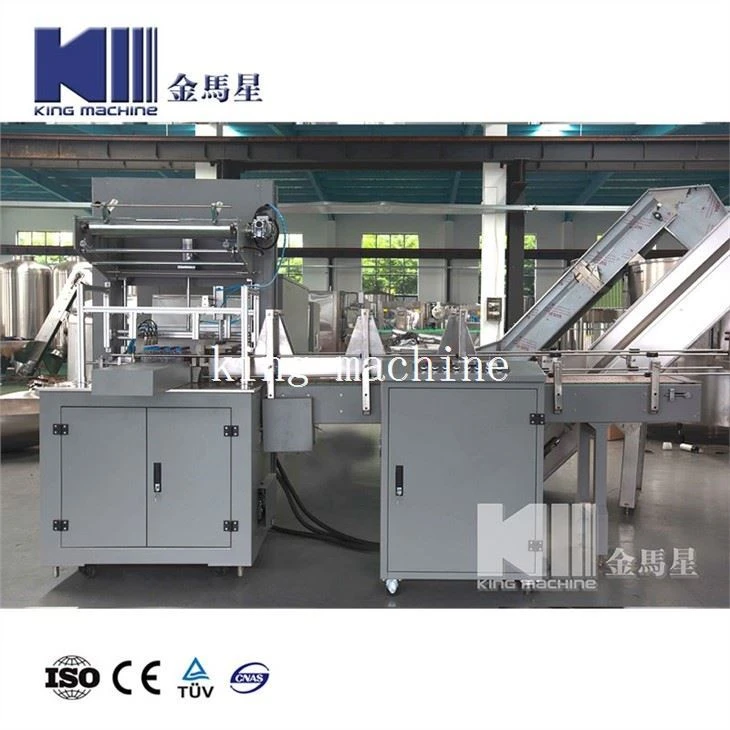

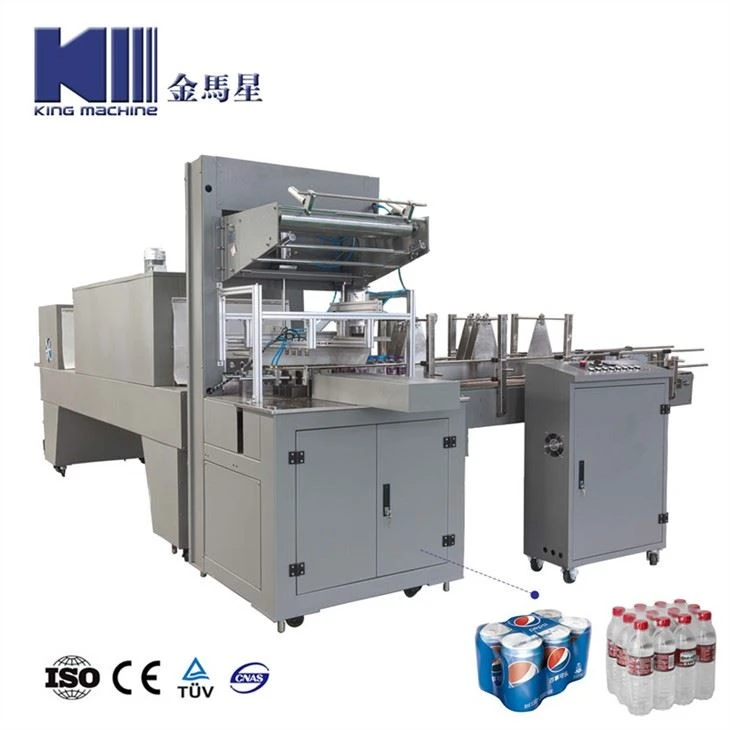

Automatic Bottle Water PE Film Heat Shrink Wrapping Packing Machine

Automatic Bottle Water PE Film Heat Shrink Wrapping Packing Machine

The machine is developed especially for mineral water, beverage wine, beer, product and soon infusion medicine bottle combination packaging, with stable function, and the packed articles tight and orderly. It can be handled as a single pushing machine when high speed demanded.

Anfon ymchwiliad

Cyflwyniad Cynnyrch

Automatic Bottle Water PE Film Heat Shrink Wrapping Packing Machine

Description:

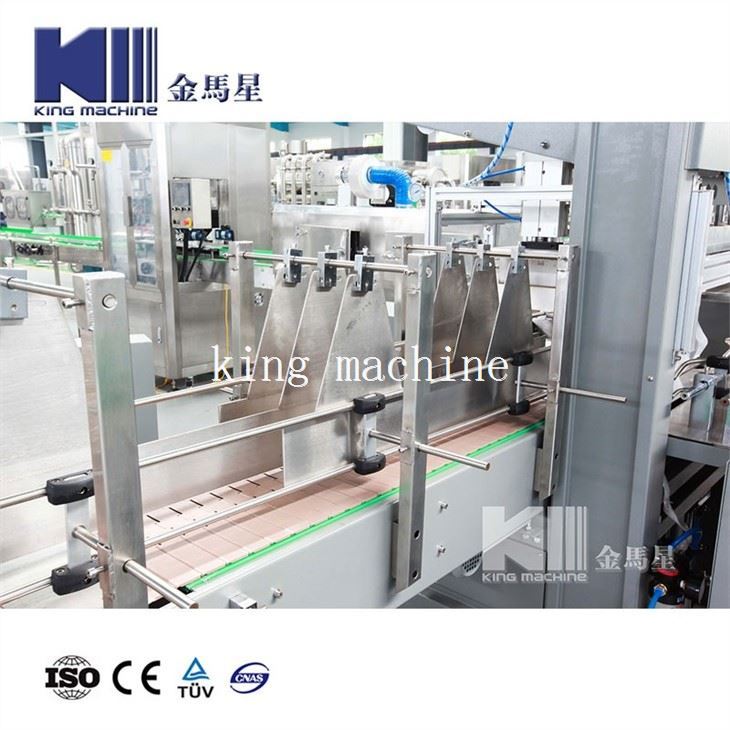

Specially designed for packaging production line of beer, beverage, pure water, fruit juice, dairy products, etc. With full automatic functions of bottle transfer and arrange, membrane packing, sealing and cut, shrinkage, cooling and shaping, etc. Using advanced constant temperature membrane heat binding technology in the world with clear and secure seal. The quick seal cooling structure guarantee that the seal has a higher strength even if under high speed production condition. Adopt with PLC automatic program circulation control with stable and reliable performance. The inductive switch controls the membrane transfer system to reliably adjust and control the membrane transfer length with less loss. All the transfer system is controlled by frequency changing devices. With stable and smooth transfer speed. Unique thermal passage with 2 sets of centrifugal thermal air circulation system that has an equal heat distribution with beautiful and secure shrinkage effect.
Parameters

Dimension for the whole unit	L6500mmW3200mmH2100mm
Thermal shrinkage passage dimension	L1800mmW650mmH400mm
Max package dimension	L600mmW400mmH350mm
Packaging speed	10-12Pcs/minute
Transfer belt width	304mm
Sealing and cutting time/temperature	0.5-1.5s 140 degree -160 degree
Operating power supply/power	380V 24kw
Operating air pressure	0.6-0.8Mpa

Technical parameter:

Facility overall size: L12000W1100H2100mm
Facility overall size: Main equipment: L12000 W1100 H2100mm
Shrinkage machine: 4200 1100 1700mm
Wrap max size: L240 W650 H450mm
Shrinkage film material: PE
Shrinkage film thickenss: 0.03-0.15mm

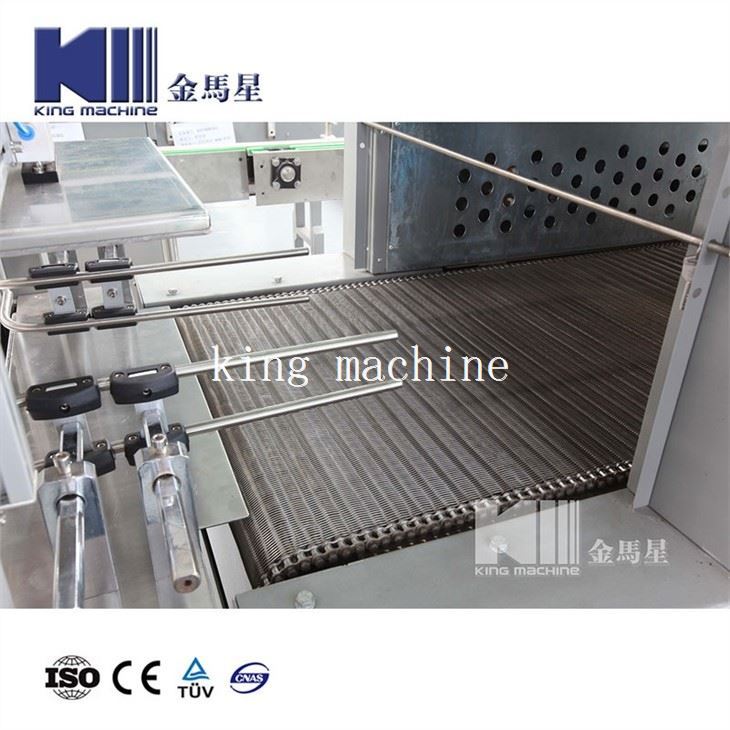

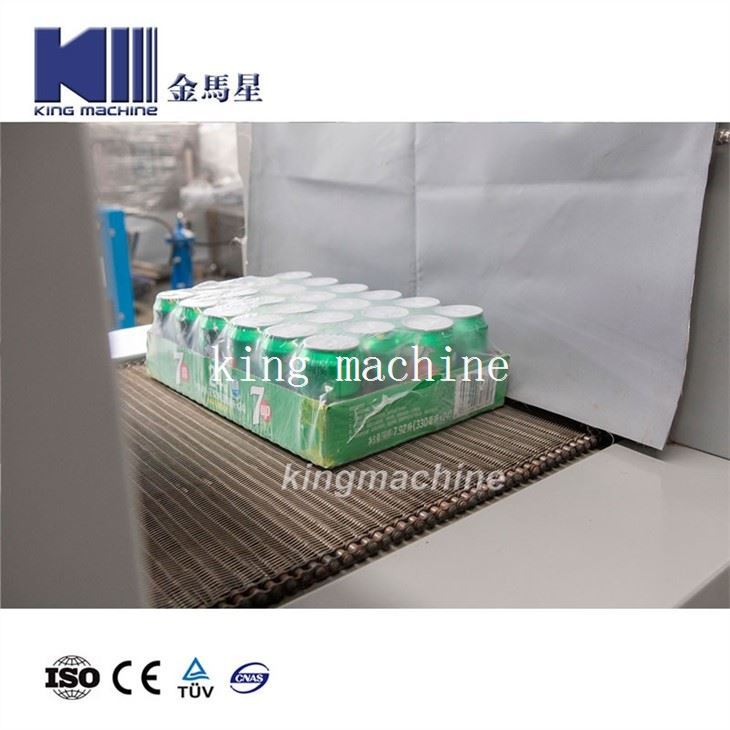

Thermo shrinkage tunnel max temperature: 160 - 260 degree Adjust at will
Max output per minute: 20 pack/minute
Facility power: 25Kw
Actual power: 20Kw/h

Facility basic collocation:
OMRON: PLC controlling system
WEINVIEW: Touch Screen
Taiwan Airtac pneumatic component 1set
Taiwan Telta transducer 2set
Stainless steel wing heating tube 12PCS
China-USA cooperation Teflon convey belt.
Shanghai HEMEI motor and Zhenjiang Taili worm derailleur.
South Korea Autonics photoelectrical switch, approach witch
Thermo sealing knife aluminum casting heating board, even temperature, long usage life,
Our company special production
Whole machine appearance plastic spray, machine rack adopt to high-quality carbonated steel, main part adopt to stainless steel.
Wooden case and wrap film separate package.

Technical requirement:

Package type:
(1)350/500/550/600ml big bag: 46, 45; Small bag, 3 4, 3 5 four type of package.
(2)1L/1.5L/2L/2.5L big bag: 33, 34; Small bag, 2 2, 2 3 four type f package
2, Regarding can, we suggest adopt to package with tray, pack steadily.
3, Package speed: 16-20bag/min
4, Meet with pre-treatment filling speed of filling machine.

(1) 350/500/550/600ml
big bag: 46, 45, (24000-29000b/h),
Small bag: 35, 34, (15000-18000b/h).

(2)1L/1.5L/2L

big bag: 3 4, 3 3(10000-14000b/hour),
Small bag: 2 3, 2 2(5000-7000b/hour).

Package material:

PE thermo shrinkage film width(200-600mm), Thickness(0.03-0.12mm)

Main component detail list

no	Name	specification	number	brand
1	board production component
2	Plant metal component
3	pneumatic component		1	SMC
4	Electric controlling component and accessory
	Photoelectric switch		1	South Korea Autonics
	Proximity switch		4	South Korea Autonics
	PLC		1	OMRON
	Touch screen		1	WEINVIEW
	Frequency converter		2	Taiwan Telta
	AC contactor		9	France Schneider
	Mid-relay		12	France Schneider

Loading list

	NO	Name	Model	Number	Remark
1	Automatic film wrappage machine			1 set
2	Bottle convey machine			1 set
3	Thermo shrinkage package machine			1 set
4	Convey machine rack			1 set
5	Wing heating tube		Stainless iron	2 piece
6	Thermo-sealing cutting			1 unit
7	Pressed rubber			1 set
8	AC contactor			1 unit
9	Middle relay			2 units
10	High temperature fabric			1 piece	Stainless steel
11	Film for machine testing			2 rolls
12	Thermo-couple			1 piece
13	Tools			1 set
14	Temperature control meter instruction
15	Frequency converter instruction			1 piece
16	Operation use instruction			1piece
